HARDWARE FEATURES

CPU

ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ

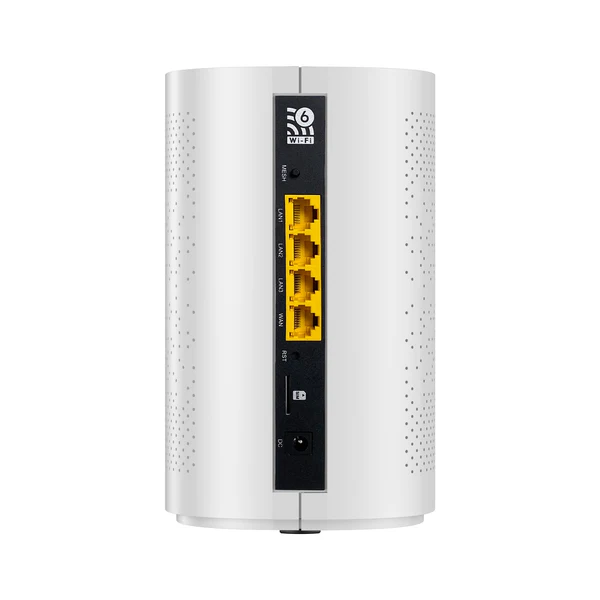

Interface

1000/2500Mbps WAN Port
3 *10/100/1000 Mbps LAN Ports

1 * M.2 slot
2 * Nano SIM Card Slot

Button

Reset Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2.5A

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Antenna

9×Internal High Gain Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5.8GHz, IEEE 802.11b/g/n/ac/ax 2.4GHz

Frequency

2.4GHz and 5.8GHz

Signal Rate

600Mbps at 2.4 GHz, 2400Mbps at 5.8GHz

Wi-Fi Max.Associated Clients

128

WAN Failover

Yes

Wireless Security

WPA/WPA2, WPA-PSK

SOFTWARE FEATURES

Channel adjustment

Support

Power adjustment

Support

Parent control

Support

SSID Hidden

Support

Black list

Support

Cloud management

Support

NTP

Support

DHCP

Support

VPN

Support
