1*10/100/1000Mbps RJ45

2 * 5dBi dual-band antennas

1 * WPS Button
1 * Reset Button

1 * System LED

12V1A, built-in

11W (max power consumption)

123*72*47.5mm(L x W x H)

IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac, IEEE802.11ax

5GHz (11ax)
2.4GHz

5GHz: Up to 2402Mbps
2.4GHz: Up to 574Mbps

2.4 GHz
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm

<20dBm (EIRP)

Repeater Mode , Access Point Mode

Default encryption mode: Mix WPA-PSK/WPA2-PSK/WPA3
WPA algorithm: TKIP

CE,FCC,RoHS

US
EU
UK
AU
BR

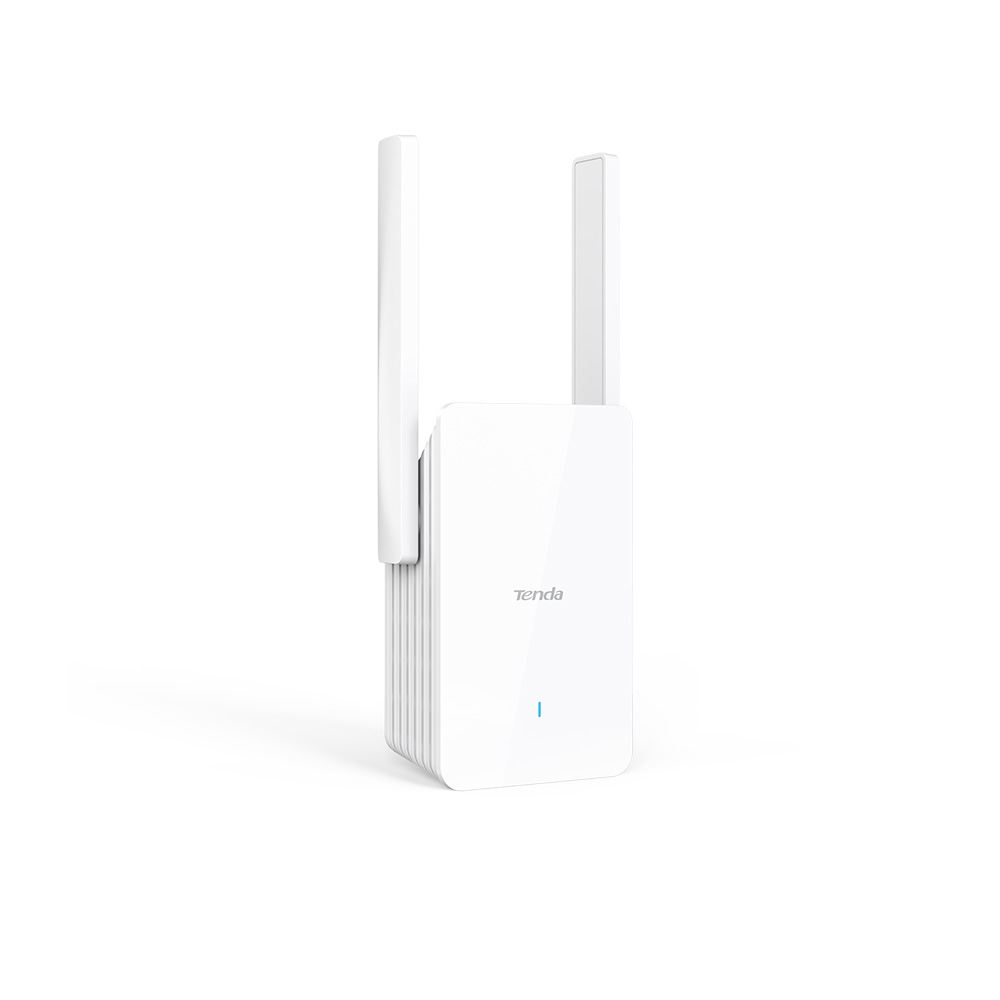

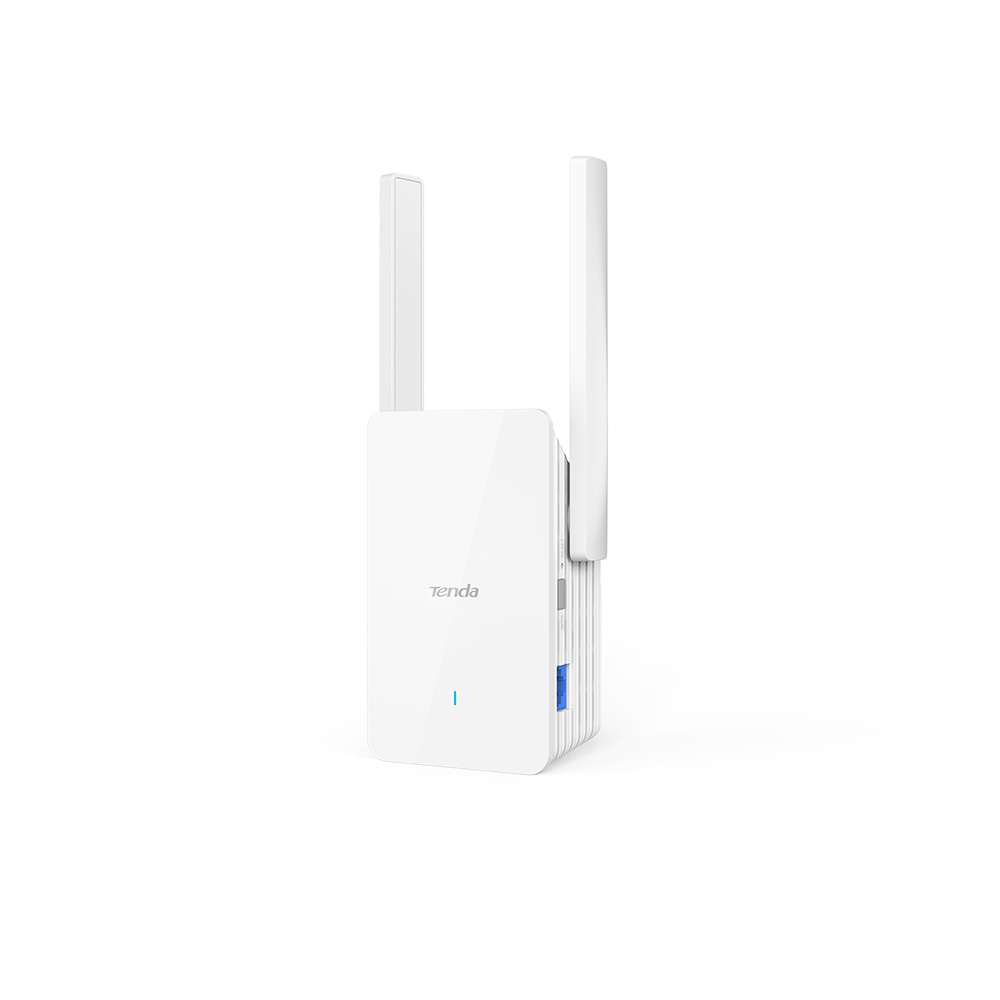

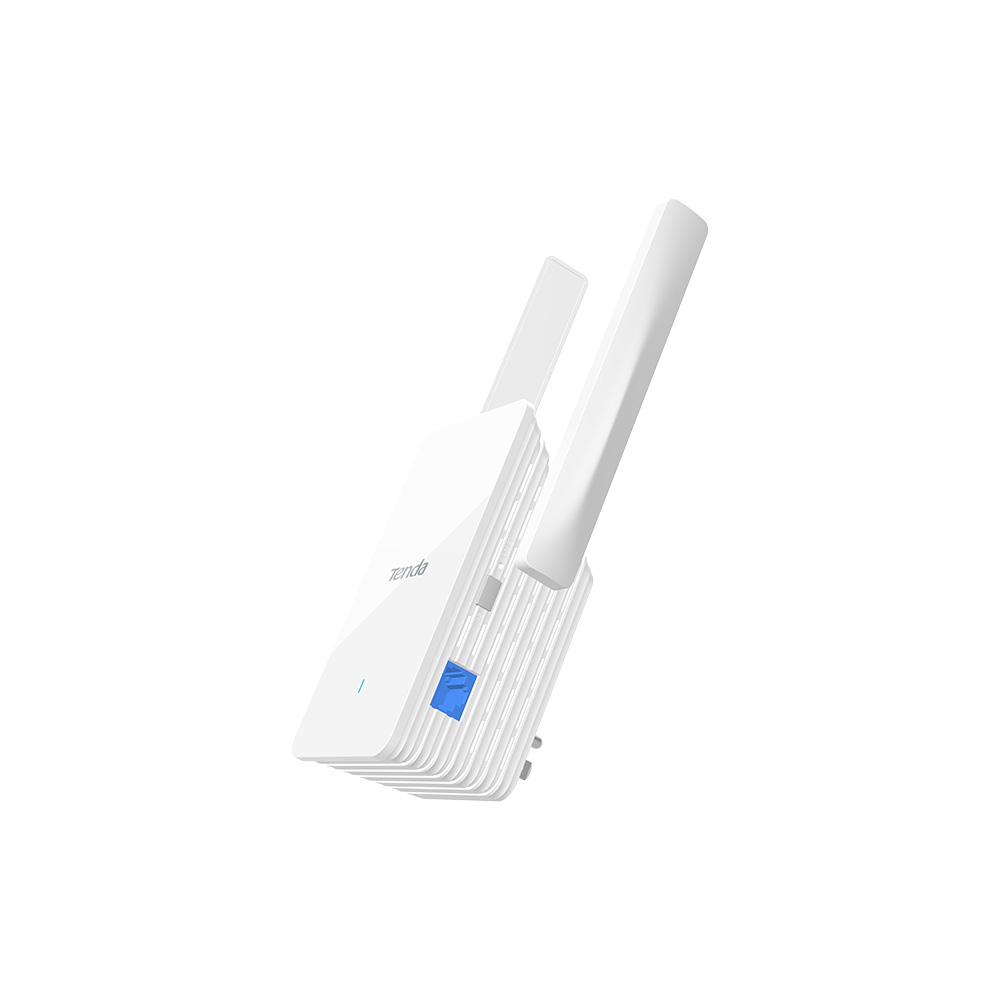

1 * AX3000 Wi-Fi 6 Range Extender
1 * Quick Installation Guide

Online Upgrade, LED Indicator Control, DST, Factory Settings, Login Password and Reboot

Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
Operating Humidity: 10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
